Black ABS Plastic Frame V-bank Filters

Short Description:

High capacity, high efficiency, V-style air filter in all plastic enclosing frame designed for installation in built-up filter banks, rooftops, split systems, free-standing units, package systems and air handlers. The present filter is a second-generation with improved performance resulting in the lowest Life-Cycle Cost (LCC) filter available. Fine fiber ensures that the filter will maintain its efficiency throughout its life in the system. It also has the lowest initial pressure drop of any ASHRAE grade high-efficiency air filter.


Product Detail

Product Tags

High capacity, high efficiency, V-style air filter in an ABS plastic enclosing frame.
• Longest lasting high efficiency filter.
• Lowest Life-Cycle Cost (LCC) filter available.
• Fine fiber ensures that filter will maintain its efficiency throughout its life in the system.
• Available in MERV 11A, MERV 13A, MERV 14A and MERV 16A.
• Rated 5-Star product when evaluated per Energy Cost Index (ECI) for superior performance, energy and sustainability when considered against other industry products of similar construction.

Specifications

Application:
Built-up filter banks, rooftops, split systems, free-standing units, package systems and air handlers
Filter Frame:Plastic, ABS
Media:Glass fiber
Recommended final pressure drop:2x Initial pressure drop
Gasket:Flat gasket
Sealant:Polyurethane
Max. final pressure drop:1.5" w.g.
Comment:Ratings: ECI value of five stars, UL Class 900.
Max Temperature (°F) :175

Typical Applications

Commercial Buildings
Healthcare
Agriculture & Tobacco
Data Centers
Pharmaceutical
Food and Beverage
Hospitality
Schools and Universities
Museums & Historic Storage

Benefits & Features

fngfnd (3)

Maximum Effective Media Area.

Multiple mini-pleat media packs, assembled into a series of V-banks, permit substantially more media to be contained in the VariCel VXL filter — up to 50% more than standard rigid cartridge filters.

Maximum effective media area provides greater airflow capacity, low resistance, high dust holding capacity, and unusually long service life.

Dual-Density Media Reduces Operating Costs.

The media is manufactured with two layers of glass fibers, coarse fibers on the air-entering side, and finer fibers on the air-leaving side.

Our dual-density design allows dirt particles to be collected throughout the entire depth of the media pack, utilizing the full filtering potential of the media and maximizing dust holding.

Maximum dust holding capacity extends the life of the filter, minimizing operating costs.

fngfnd (1)

Construction

The header and cell sides provide a sturdy construction that resists damage during shipping, handling, and operation. Constructed of plastic, the filter is fully incinerable.

Separators

The thermoplastic separators maintain uniform spacing between pleats to allow optimal flow of air into and through the filter. The separators also ensure large effective media area for low resistance and high dust holding capacity.

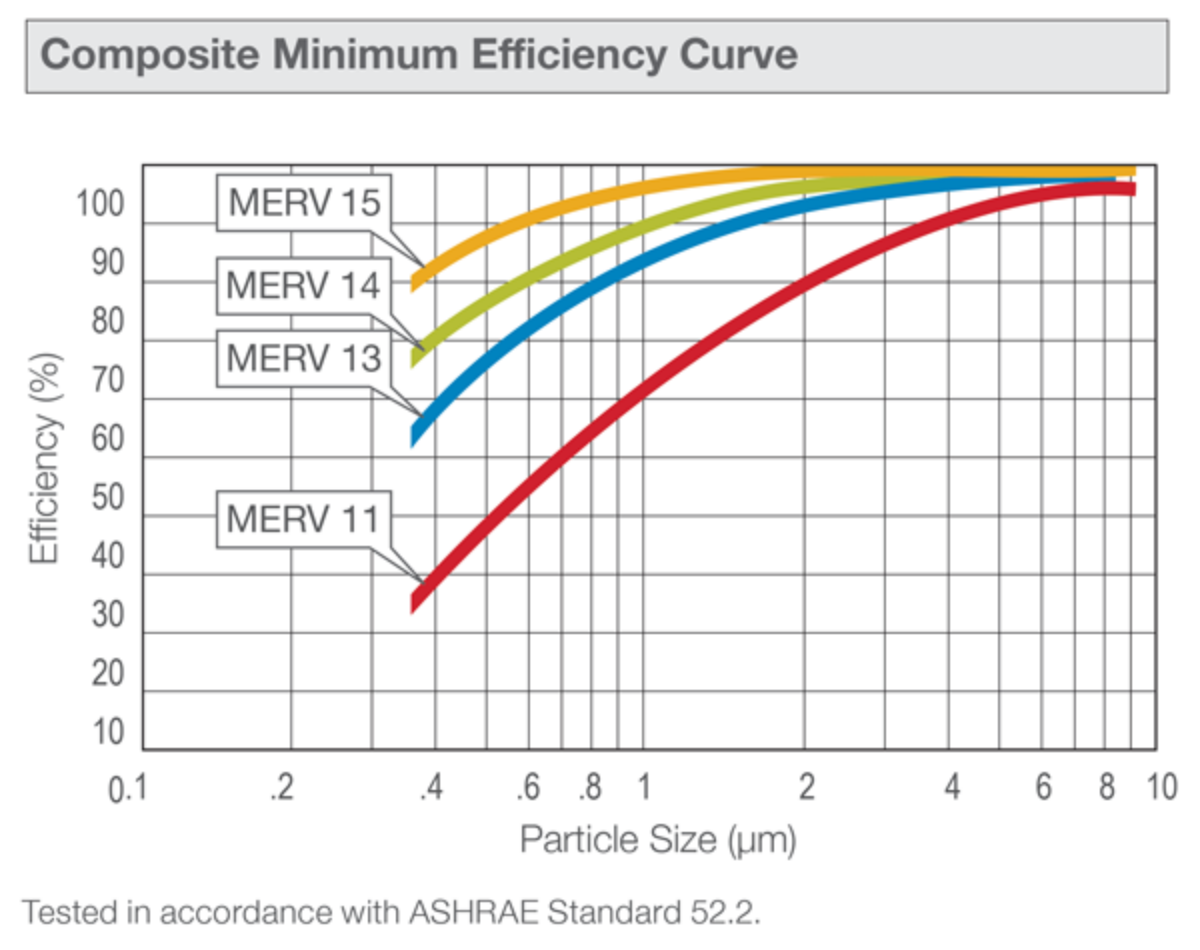

fngfnd (2)
Media Type Dual-Density FiberglassFiberglass
Filter Depth 11 1/2" (292 mm)
Special Size Available No
Max Operating Temperature 158˚F (70˚C)
Efficiency MERV 11 MERV 13 MERV 14 MERV 15
Frame Material Plastic
Separator Style Gluebead
Header Type Single HeaderDouble Header
Antimicrobial Available Yes
Certification UL900
